The machine halts automatically when the preset count is reached or when a sample breaks.

Step-by-Step Operating Instructions

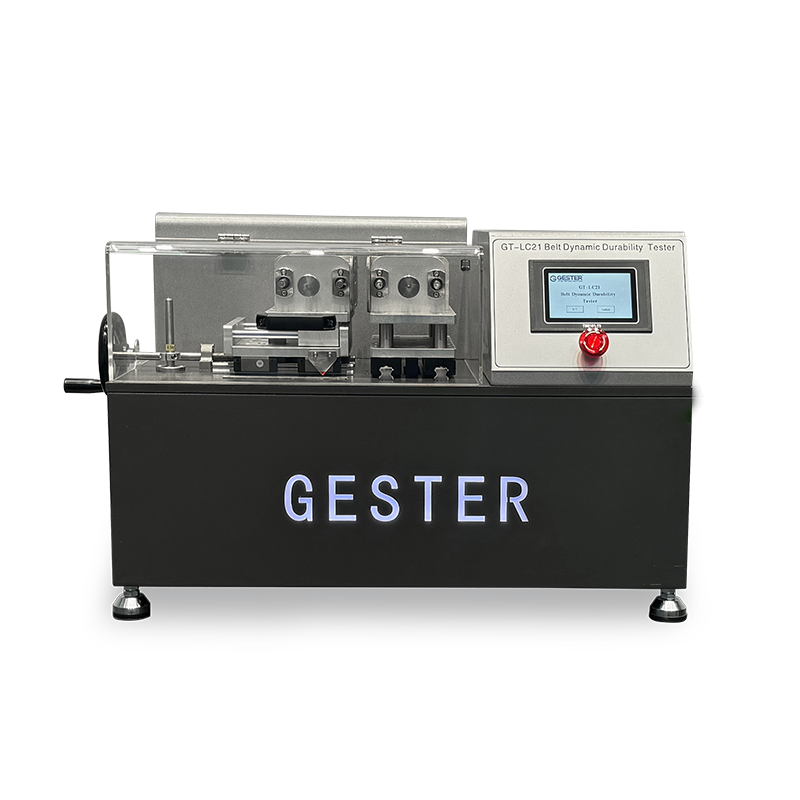

To ensure optimal results, follow these steps while using the Belt Dynamic Durability Tester GT-LC21:

Prepare the Machine
Open the safety cover and press the "Micro" button to align the two fixture ports.
Rotate the handles to position the movement device at 35mm.

Install the Specimen
Adjust the fixture ports to place the specimen and clamp it securely.
Select the load based on the bending force of the material (e.g., 2kg for standard tests).

Set Parameters
Enter the "SETTING" menu on the touch screen.
Choose the number of test cycles (e.g., 100 cycles) and the mode (Counter or Timer).
Close the safety cover to begin testing.

Conduct the Test
Belt Dynamic Durability Tester GT-LC21 will operate automatically until the set number of cycles is completed or the specimen fails.

Analyze Results
After the test stops, remove the sample and examine it for cracks, delamination, or other defects.

Why Choose Belt Dynamic Durability Tester GT-LC21?
1. Unmatched Precision: The combination of PLC control, adjustable parameters, and stainless steel construction ensures accurate and repeatable results.

2. Enhanced Safety: With a protective cover and automatic stop mechanisms, it prioritizes operator safety.

3. Versatility: Suitable for a wide range of materials, this tester meets the needs of diverse industries.

4. Ease of Use: The intuitive touch screen interface and straightforward setup process make it accessible for operators of all experience levels.
