Everything You Need to Know About The Chair Front Stability Testing Machine GT-LB06A Apr 25, 2025

Everything You Need to Know About The Chair Front Stability Testing Machine GT-LB06A

The GT-LB06A Chair Front Stability Testing Machine evaluates critical safety performance for office and home chairs. How can you quickly verify the forward stability of a chair? This article describes Chair Front Stability Testing Machine's testing principles, Standards, and step-by-step procedure, or if you're considering whether it's worth investing in, then this is just the article for you.

Principle

The test sample is placed on the test table, the front foot is blocked with the block. Apply a certain load on the seat surface, apply 20 N of force to the loading point. Check whether the specimen is tilted forward to assess the forward stability of the specimen.

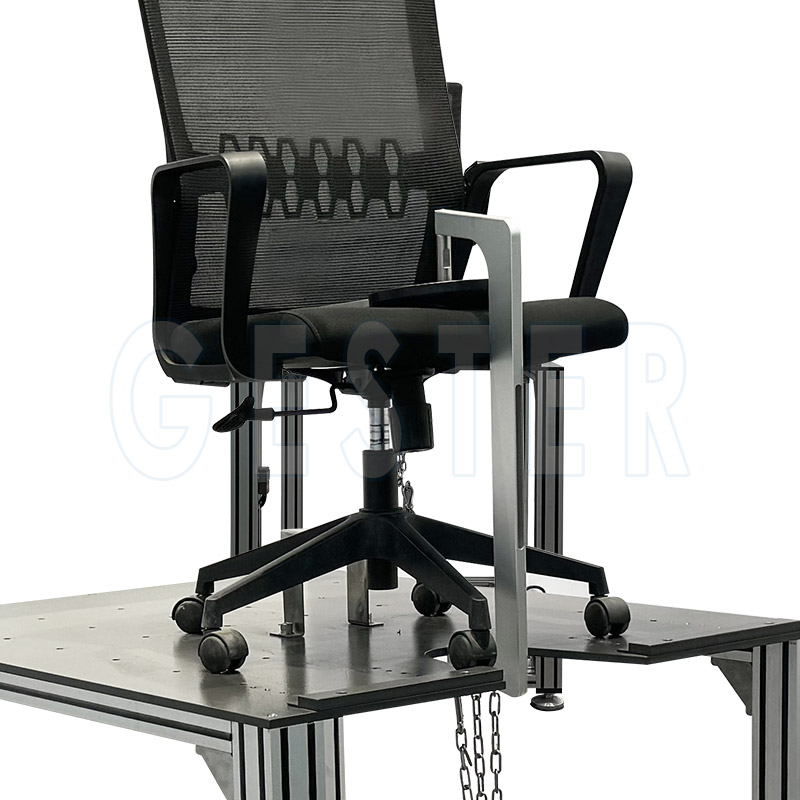

Chair Front Stability Testing Machine

Operation Procedure

Step 1
Connect the power supply and switch on the power switch.
Mark the position of the loading point on the chair 60mm from the edge.

Step 2

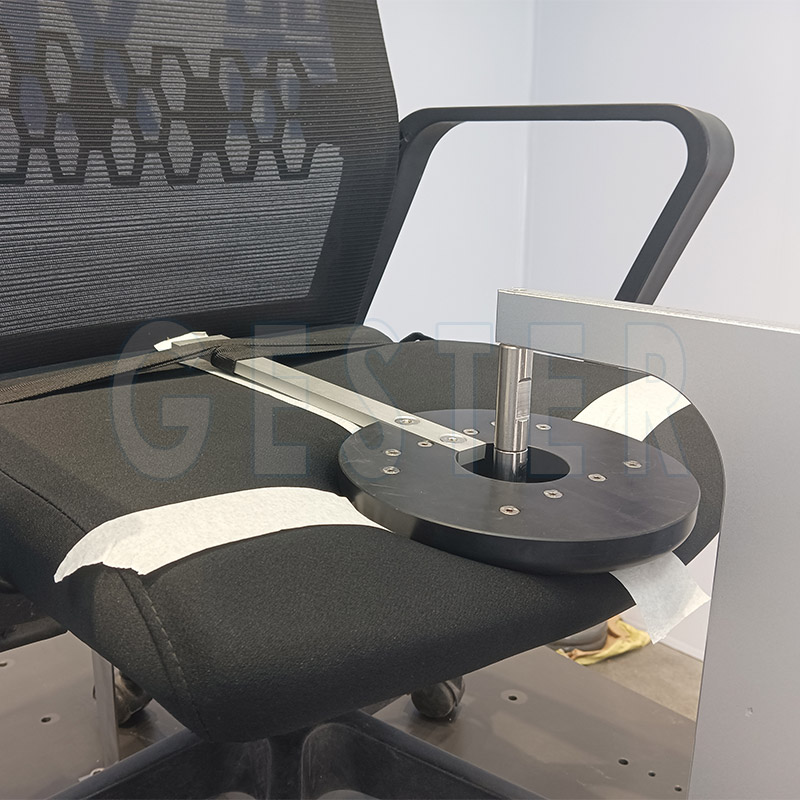

Place a loading pad, with the center of the pad corresponding to the line drawn on the chair, and tie it with a string.
Mount and secure the chair to the machine, adjusting the chair so that the center is in the same line as the weight.

Step 3
The chair wheel is near the stopper.
Control the weight lifter to lift the weights upwards to a certain height, for safety while the weights are rising support the weights by hand to prevent the weights from tipping over. Select the loading head on the C
Select the loading head on the C-buckle and install it on the C-buckle.

Step 4
Install the C-buckle into the center hole position of the loading pad.

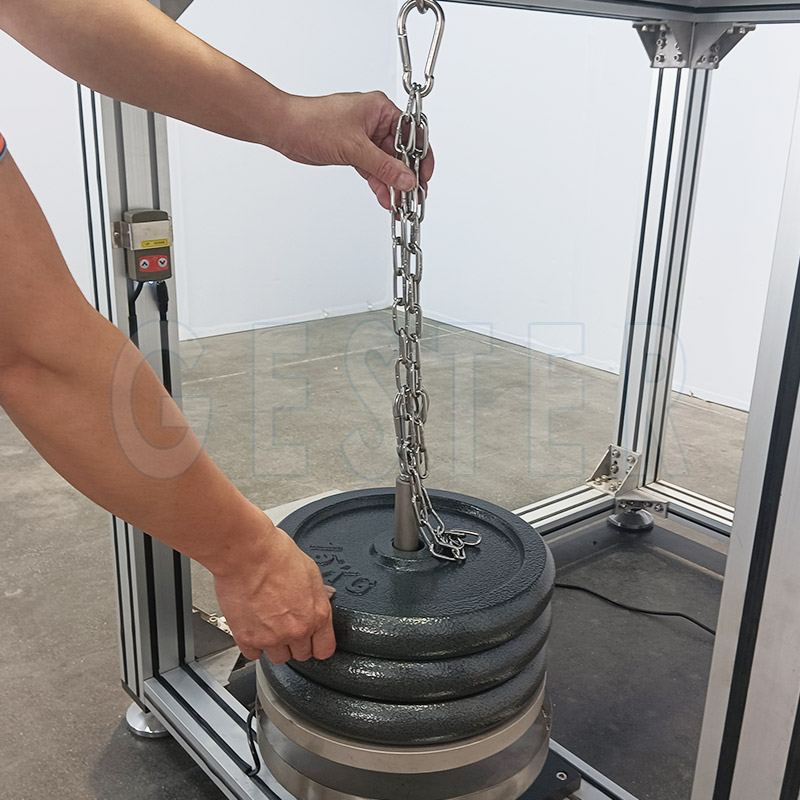

Use a chain to attach to the bottom of the C-buckle, with the chain in the appropriate length position and the other end attached to the weights.
Lower the weight disc to disengage it from the weights.

Step 5

Load a horizontal force of 20N at the loading point of the chair to see if the chair tilts.

FAQ

Q1: Which standards does Chair Front Stability Testing Machine comply with?
A: ANSI/BIFMA X5.1 - 2017 Section 11.4 , EN 1335-3-2009 Section 7.1.2, 7.1.3, EN1022-17 Section6.3.1,6.3.3, 6.3.4, 6.3.5, 6.3.6, EN 16139 Section 4.3.2

Q2: Does Chair Front Stability Testing Machine come with accessories?
A: Yes. Option Accessories: FB-200N IMADA push pull scale
500N Load weights for EN 1335-3-2009 Section 7.1.3

Q3: What is the test load?
A: 600N (135 lbf.) (Accumulated weight).

Conclusion

The Chair Front Stability Testing Machine is a must-have tool for manufacturers and test labs to ensure seating products are safe and compliant. following standardized procedures, it helps reduce liability risks and improve product reliability.
